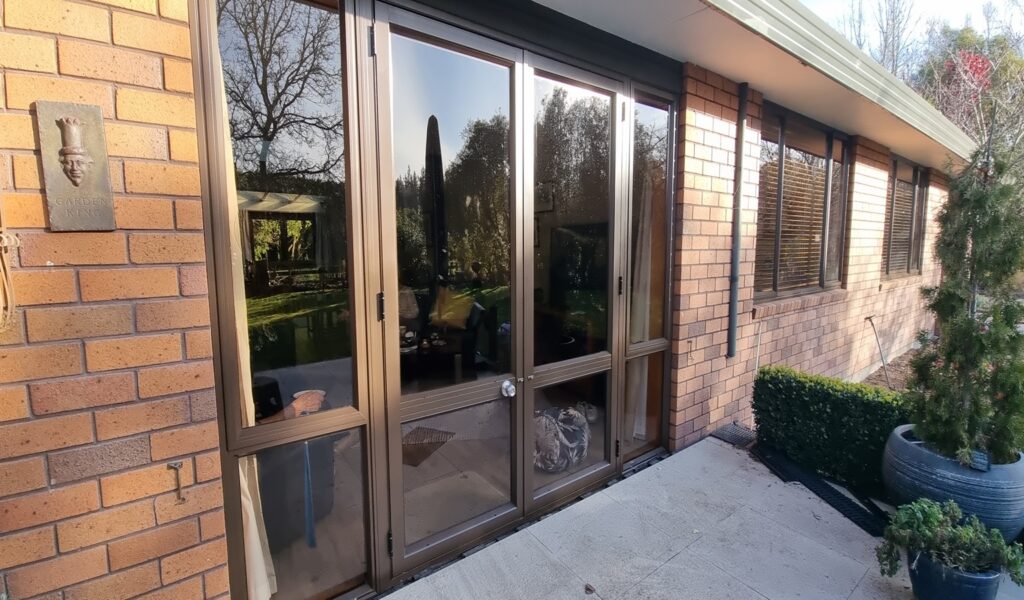

Spray Painting Aluminium Windows Christchurch | New Look Coatings

One of the clever solutions is spray painting aluminium windows to update old ones, metallic protection against the elements, and a new appearance for a home or an office. The process of spray painting requires cleaning of the frames, masking the glass and surrounding places with paper and tape before spraying.

Then, use the metal-specific, high-quality primer to ensure the topcoat paint adheres best. Apply several coats of paint spray on top of your selection, painting in a thin, even layer. When the paint is dry, apply the paint without taking off the tape.

This guide is described in simple terms. It includes the tools, primers, topcoats, typical issues, and the local advice regarding Christchurch, New Zealand. You will understand how professionals operate, what to expect regarding pricing, and how to maintain the finish looking good over the years.

What you require (tools and materials)

Paints	2-pack polyurethane (2K) topcoat (or acrylic enamel on a low budget) + aluminium primer (self-etching or epoxy).
Cleaning	Metal degreaser/solvent cleaner to be used by the manufacturer of the paint.
Abrasives	180-320 grit sandpaper, micro-etch or abrasive pads.
Fillers	metal filler/putty, aluminium rated, and pits.
Spray Kit	Either HVLP spray gun (site work) or airless sprayer (large jobs).
Accessories	Mixing cups, 2K mix scales, wet/dry cloths, wet film gauge / dry film thickness gauge (option).
Masking	Low tack masking tape, masking film / plastic, drop sheets, backer boards to sharp edges.
PPE	Eye protection, coveralls, respirator, respirator cartridges, organic vapor, and gloves.

Cleanup/ disposal: cleaning the solvent from the gun, waste containers, rags, and disposal technique according to the Christchurch Council.

How to spray paint aluminium windows

Inspect & plan

Walk every window. Search for deep corrosion, dents, broken seals, or sticking moving parts.

Decide whether the frame is paintable in situ (left on the building), or it will have to be taken off to be worked on in the workshop or powder-coated.

Write a list of repairs (pitting, fillers, gasket replacement, etc.), the number of windows, and scaffolding or access needs.

Clean & degrease

Using a brush, remove visible dust and loose paint.

Use a solvent cleaner or alkaline degreaser to wipe or wash the frame to remove oils, grease, and road film. Apply a nylon brush to the corners and tracks.

Wipe with clean water (with water-based cleaner) and dry thoroughly. Do not paint on a damp surface.

Repair & mechanical prep

Eliminate corrosion and loosening paint. In case of a light scuff, sanding is sufficient. To strip out heavy corrosion, back to sound metal.

Fill in pits and dents with an aluminium-approved filler. Sand smooth after cure.

Wipe all surfaces with scuff sand or micro-etch to give the primer a comparable key. Use 180-320 grit or an abrasive pad. Aloy anodized aluminum, be comprehensive – the factory finish is extremely smooth, and needs additional abrasion or conversion coating.

Final clean before priming

Wipe off sanding dust, use a tack cloth or a clean rag, and the solvent suggested by the manufacturer of paint.

Test contamination (silicone, oil, fingerprints, and so on) and re-clean.

Masking & protection

Cover glass, seals, hardware, and walls around. Apply low-tack tapes adjacent to rubber seals.

Backer board behind the frame will be crisp with a perfect line.

Cover plants and vehicles, and regulate overspray. A portable shelter or screens will aid in windy days.

Priming (corrosion protection & adhesion)

Selection of primer: self-etching when working on light jobs, epoxy primer when it is necessary to protect against coastal or heavy loads, conversion primers when working with anodized surfaces.

The manufacturer recommends mixing 2K primers according to their ratio. Use accurate scales.

Use even coats- do not overload. Take the flash-off and recoat the windows of the manufacturer.

In case the primer needs to be sanded between coats, do it sparingly, then wipe off afterwards.

Topcoat spraying (the finish)

The most durable and UV-resistant is 2K polyurethane. An alternative is acrylic enamel, which is cheaper and simpler.

Combine the mixer and hardener following the instructions. Monitor the pot life and temperature limit.

Calibrate your gun: check on scrap aluminium. Common instructions: maintain constant gun speed, pass-over of 40-50 percent, and 150-250 mm (6-10 in) hold-on.

paint several coats of paint rather than a single coat. A good film build is obtained with two to three coats.

Permit suggested recoat periods among coats. Don’t rush. An Early application can result in softening; a Late application may necessitate a small amount of light scuff sanding up before the next coat.

Curing, inspection & touch-ups

Once the last coating has been applied, let the paint dry as per the product datasheet. The average time it takes is one to 2 days to become fully cured, depending on the product, temperature, and humidity.

Check work in terms of runs, orange peel, fiskeyes, and nibs of dust. Light defects may be wet-sanded and buffed or spot-sanded. Significant faults can demand dismantling and reworking.

Repair has to be done using the same product and colour code.

Reassembly & clean finish

Removal of masking tape and backer boards must be done carefully. Any hardware or seals that have been removed must be replaced.

Wipe the glass and the surfaces next to it.

Drop your client a brief note of care: no heavy contact during the cure time, wash frames simply twice a year, and use a tiny piece of paint as a toy touch-up.

Extra practical tips

Weather: mild, dry, work. No direct sun, high winds, or very cold/humid days.

Control of the environment: Tents, screens, or a filtered spray booth are the best.

Overspray: always keep it in check, as it is the biggest contamination of neighbour complaints.

Safety: No compromise can be made regarding respirators and ventilation when dealing with solvent and 2K paints.

Records: brand, batch, mixing ratios, and cure times to be used in the future.

Why should Spray Painting be used on Frames of Aluminium?

Spray paint provides a smooth, even finish. It fits better than brushes into thin profiles and tight corners. It is also useful for sticking paint onto aluminium in case the appropriate primers are used.

The advantages of spray painting include:

Cost: cheaper than powder coating or complete replacement.

Speed: faster than brushing and more coverage.

Appearance: appears as a factory finish when properly done.

Flexibility: may be done on site (in-situ), or in a workshop.

What is the meaning of spray painting aluminium windows?

Painting aluminum windows through spraying entails the use of a spray gun to spray the required paint after thorough preparation. The basic steps are:

• Inspect the frames.
• Clean and degrease.
• Scuff or micro-etch the metal.
• Apply an aluminium primer.
• Spray a durable topcoat.
• Test to cure and check the end.

Preparing anodised aluminium

Special attention is required for anodised aluminium. The finish in the factory is hard and not easily penetrated by paint. To paint anodised frames:

• Raise scuff sand or micro-etch to rough up the surface.
• Apply conversion coating primer or high-adhesion primer.
• Epoxy primers are appropriate for anodised metal.
• Apply the test area to confirm adhesion.
• By doing it right, painted anodised frames can be appealing and durable.

Best primers and best topcoats of aluminium.

The correct paint system prolongs the job.

Primers

• Self-etching primer is affordable for most jobs.
• Epoxy primer provides superior corrosion protection.
• Optimal primers in conversion are anodised aluminium.

Topcoats

2K polyurethane: the best option when it comes to outdoor usage. Hard, flexible, and UV stable.

Acrylic enamel: less expensive and easier to use. Good for low-stress areas.

UV-proof topcoats are useful in high-sun areas.

The product data sheet should always be adhered to. It contains proportions of mixing, spray parameters, and remedial intervals. Question the new look coatings contractor about the brands that they employ and their reasons.

Tools and spray systems

On-site, two systems are utilized:

HVLP (High Volume Low Pressure)

• Less overspray.
• Narrow-profile fine control.
• Slower for big jobs.

Airless

• Fast.
• Lays thicker coats.
• Requires crafty manipulation to prevent rushes.

Other equipment: respirators, gloves, eye protection, sanding equipment, masking tapes, drop sheets, and mixing tools. In 2K products, precise mixing scales should be used.

Powder Coating vs. Spray Painting

Both give a good finish. The most appropriate option is based on the occupation.

Powder coating

• Very durable and tough.
• Removal and curing of needs.
• More expensive and logistically demanding.

Spray painting

• Can be done in place.
• Lower cost and quicker.
• It is highly durable with a 2K topcoat and the correct primer.

Spray painting is the winner in terms of cost and convenience for many homes in Christchurch. In the case of high-wear commercial components, powder is the additional cost worth investing in.

How to paint aluminium window frames without removing them

A lot of people desire to be resprayed without taking the frame off. It is often possible. Key tips:

• Put on a mask to cover glass and other surfaces.
• Apply low-tack tape on seals.
• Select 2K topcoats and epoxy primers for the most durable application.
• Section by section, and allowed to flash.
• In case of bad corrosion, it is better to remove frames.

On-site work is time and cost saving, yet it should be performed by an individual who understands how to secure the house as well as how to make it without running.

Common problems and how to fix them

The following are the common problems and solutions.

Poor adhesion

• Reason: oil or bad sanding, or improper primer.
• Fix: clean and re-clean with aluminium primer.
• Runs and sags
• Reason: coat of armor, or improper distance of the gun.
• Fix: Spray and re-spray in finer layers.

Orange peel

• Cause: incorrect atomisation, spray settings, or cold air.
• Fix: right spray pressure and nozzle size. Sand and recoat if needed.
• Fisheye
• Pathophysiology: silicone contamination.
• Fix: wipe the surface with solvent and do not use silicone products around.

Salt corrosion

• Reason: coastal salt undermining of the finish.
• Resolution: Apply epoxy primer and schedule frequent clean-downs.
• A competent contractor would eliminate these issues through proper planning and management.

Maintenance

• Frames are maintained with a small amount of care.
• cleanse with a soft detergent twice a year. Rinse well.
• Corrosion can be prevented by repairing small chips.
• Use solvents sparingly on the paint.
• Fit new seals to prevent penetration of water.

Main cost factors

Condition of the frames

Clean and sound frames are the cheapest.

Frames that are corroded, pitted, or highly oxidised require additional effort (stripping, filler, rust treatment). That includes labour and materials.

Surface preparation needed

Cleaning + scuff sanding = less expensive.

Stripping is more costly, blasting is more costly, and filler work is repeated.

Primer and topcoat chosen

Single-pack systems (acrylic enamel) are cheaper and not long-lasting.

It is more expensive but much better in life, and well justified in the Christchurch climate, trade systems (epoxy primer + 2-pack polyurethane).

In-situ vs workshop (removal of the frames)

On-site (painting frames on the building) is less expensive since it does not require the removal, transportation, or reinstallation.

More costly to work with, transport, and equipment are the workshop or powder coating (which needs oven curing).

Access and site logistics

It is less expensive at the ground level, where it is easily accessible.

High windows, high floors, or inconvenient sites will need a ladder, scaffolding, or abseilers – this will further contribute to increased labor and employment expenses.

Controlling masking and overspray.

Precise concealing of glass, seals, and surrounding finishes is time-consuming. The larger jobs or jobs close to delicate landscapes increase the costs because of additional protection.

Count of coats and the thickness of the dry film (film build)

The greater the coats and build of the film, the higher the cost of material and labour. Film build that is recommended for trade use to provide corrosion protection is more expensive and longer than the film build.

Selection of colour and colour matching

The standard colours are less expensive. Special textured finishes or colour matching to a specific colour cost extra money.

Space/number of windows (economies of scale)

The price per window in single window jobs is higher. The bigger the job, the cheaper per window is, as set-up time is allocated over a greater number of frames.

Materials, equipment, and consumables.

Prices include quality primers, 2K topcoats, PPE, tapes, fillers and disposal of wastes.

Environmental compliance, safety, and health.

Adequate PPE and containment, use of filtered spray booths (where applicable), and proper disposal of hazardous wastes are real expenses that good contractors incorporate.

Experience in warranty and contractor experience

Worthy contractors who are warranted and insured normally have higher prices but have a higher value in the long term.

DIY vs professional work

The frame is narrow and precise, and small DIY jobs can be done. For DIY:

• Experience in spraying scrap metal.
• Have good primers and use appropriate cleaners.
• Wear a mask and apply the HVLP gun.
• Additional sanding and remedial time are anticipated.

Employing an expert offers superior equipment, expedited labor, and a guarantee. For most homeowners, using a professional spray respray is the best option.

Conclusion

Aluminium windows can be sprayed to save money and provide a new solid surface. Apply the right primers, topcoat, and cleaners (2K). Cover up and appoint a contractor conversant with conditions in Christchurch. Painted aluminium will be attractive over a long period with attention and the correct products. Renewing joinery can be implemented by spray painting aluminium windows. It is relatively cheap and capable of providing a near factory finish, provided one does it properly.

• The most significant step is prep. Clean, scuff, and prime well.
• Optimal long-term performance is attained using the right primer and a 2K polyurethane topcoat.
• Wear a mask to cover the glass and other surrounding places.
• Prepare local weather and coastal exposures.
• Get a written quote and confirm the warranties.

FAQs
